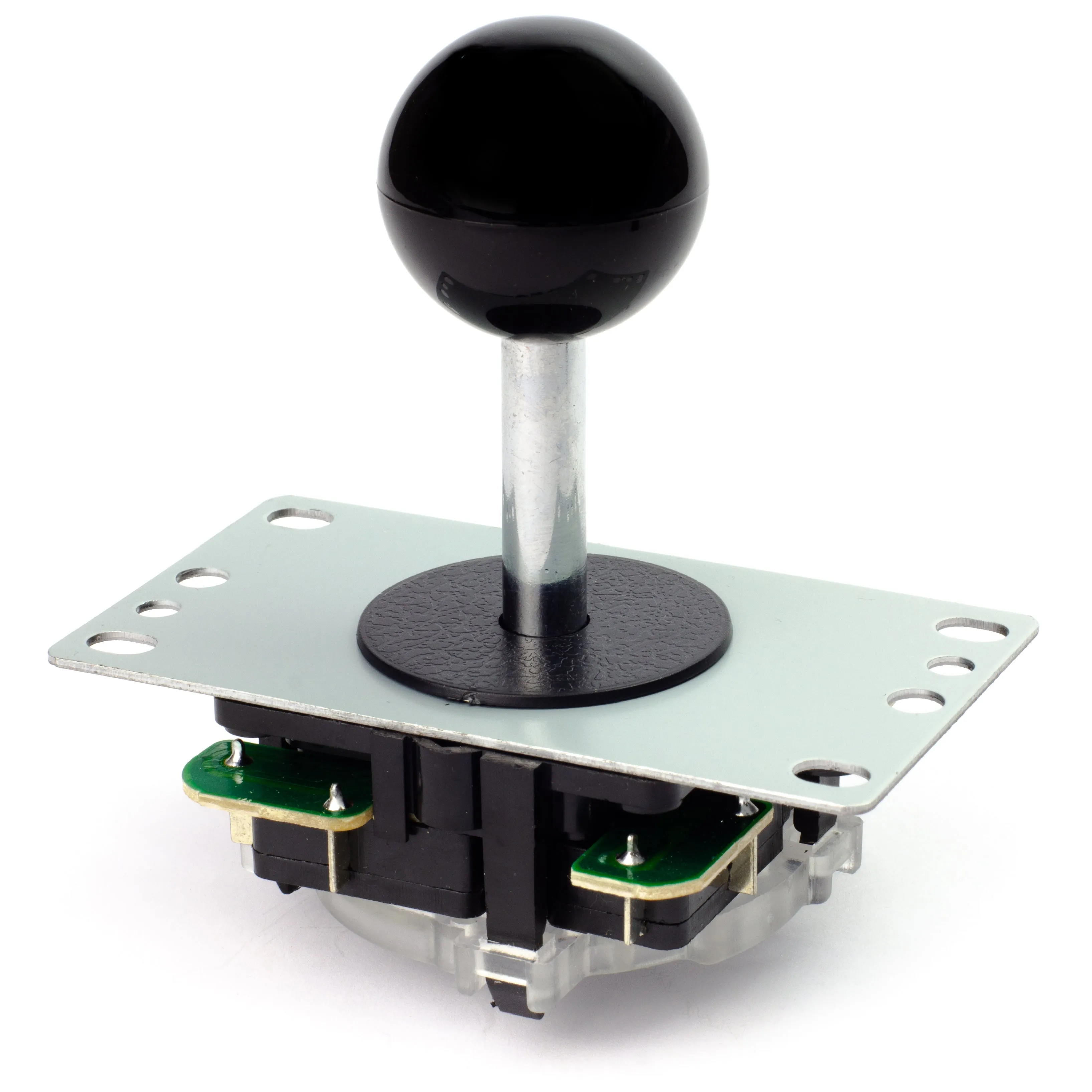

This clicky joystick is great for DIY arcade builds, and it has a handy 5-pin connector that means connecting it is just a case of plugging in a single cable connector.

We use this joystick in our new and it's solid, responsive, and reliable. The feel is a little looser than the  that we sell, more similar to a Japanese joystick. Pair it with a , and some and you've got all the controls you need to build your own arcade machine!

We'd recommend also picking up one of our new , which includes a 5-pin connector to 5x Dupont connector cable that can be used with this joystick.

Features

• 35mm black ball top
• Black dust cover
• 8-way square restrictor gate
• 9mm diameter, 36mm tall shaft
• 5-pin connector (compatible with JST-XH cable)

Notes

• Pinout: up, down, right, left, ground (from pin closest to centre)
• Overall dimensions (including ball-top): 106x70x95mm
• Mounting plate dimensions: 60x95mm
• Corner hole centres (5mm holes): 44x82mm
• Centre hole centres (6mm holes): 85mm
