(1 1) 2 OUTPUTS PRODUCT CODE: PSC125051085

3 OUTPUTS PRODUCT CODE: PSC125053085

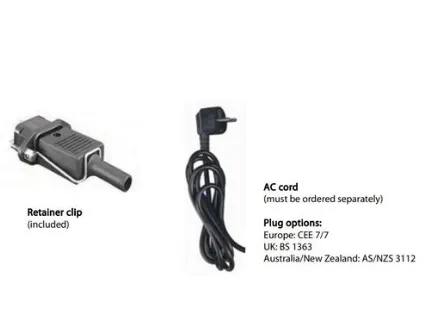

Please Note: Mains Cord AU/NZ is required to suit this charger, it comes free with the unit.

Bluetooth Smart Enabled

Any Bluetooth enabled smartphone, tablet or other device can be used to monitor, change settings and to update the charger when new software features become available.

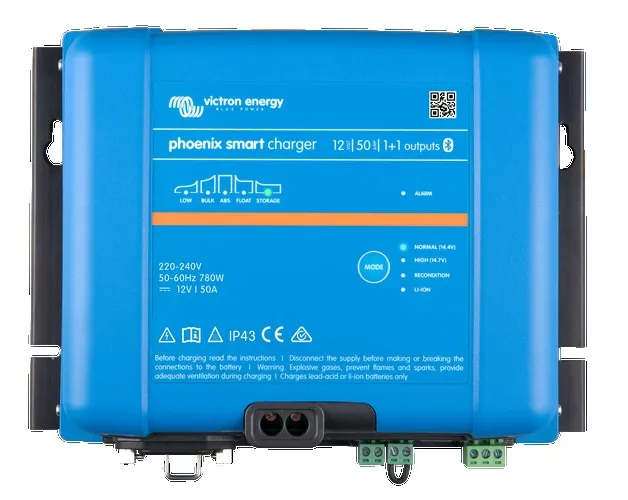

Phoenix Smart (1 1) two outputs to charge two battery banks

The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.

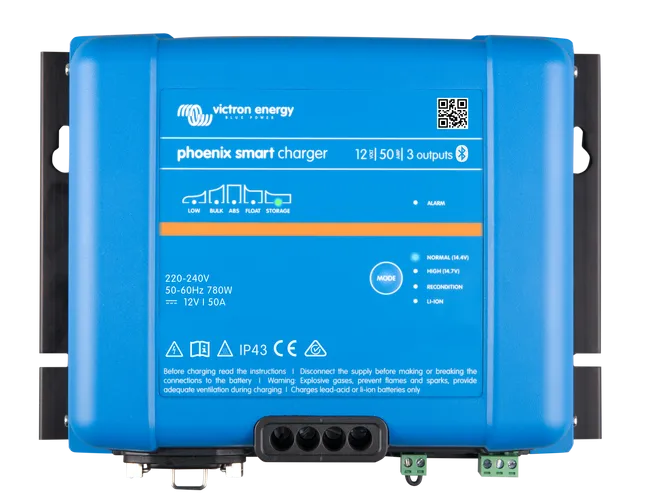

Phoenix Smart (3) three outputs to charge three battery banks

All outputs can supply the full rated output current.

Automatic Voltage Compensation

The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.

Adaptive 5-Stage Charge Algorithm: Bulk - Absorption - Recondition - Float - Storage

The Phoenix Smart IP43 charger features Victron's well known 'adaptive' battery management system that can be pre-set to suit different types of . The 'adaptive' feature will automatically optimise the charge process relative to the way the battery is being used.

Enclosure Specifications:

Material & Colour: Aluminium (Blue RAL 5012)

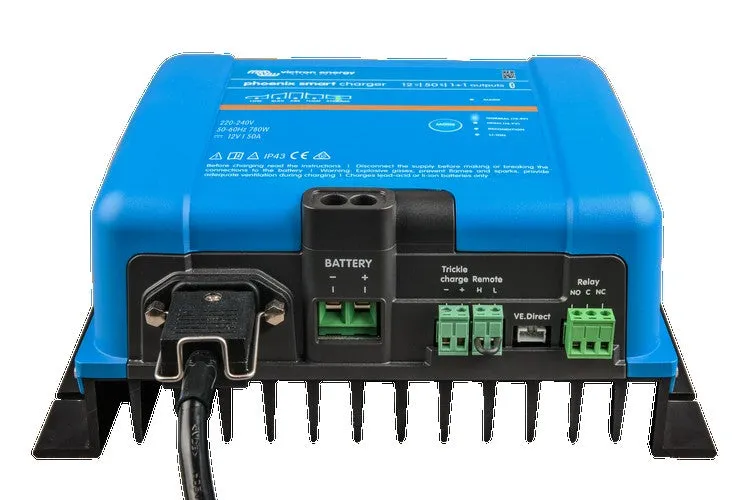

Battery Connection: Screw terminals 16mm AWG6

Weight: 3.5kg

Dimensions: 180mm (H) x 249mm (W) x 100mm (D)
